使用docker安装yapi |

吴老二 2020年7月23日18:08:23 评论 5,139 次浏览

yapi是一个接口管理工具，如何使用可以参考官方的使用说明，这里就不多说了，可以参考：https://hellosean1025.github.io/yapi/documents/index.html 下面看一下如何使用docker部署，首先我们需要安装docker，可以参考：https://www.wulaoer.org/?p=260

先把yapi的项目git下来，这里是使用别人对yapi二次开发的环境，所以和原环境不太一样，

[root@wulaoer.org ~]# cd /apps/work/service/
[root@wulaoer.org service]# git clone https://gitee.com/fjc0k/docker-YApi.git
Cloning into 'docker-YApi'...
remote: Enumerating objects: 460, done.
remote: Counting objects: 100% (460/460), done.
remote: Compressing objects: 100% (201/201), done.
remote: Total 460 (delta 253), reused 425 (delta 232), pack-reused 0
Receiving objects: 100% (460/460), 80.10 KiB | 0 bytes/s, done.
Resolving deltas: 100% (253/253), done.
[root@wulaoer.org service]# cd docker-YApi
[root@wulaoer.org docker-YApi]#

yapi的docker配置文件已经git下来了，下面配置一下yapi的信息，yapi的存储使用的是mongodb，在配置文件中会自动拉取一个mongodb的镜像并把启动的容器关联到yapi，看下配置信息

[root@wulaoer.org docker-YApi]#  cat docker-compose.yml

原文件内容：
version: '3'

services:
  yapi-web:
    image: jayfong/yapi:latest
    container_name: yapi-web
    ports:
      - 40001:3000
    environment:
      - YAPI_ADMIN_ACCOUNT=admin@docker.yapi
      - YAPI_ADMIN_PASSWORD=adm1n
      - YAPI_CLOSE_REGISTER=true
      - YAPI_DB_SERVERNAME=yapi-mongo
      - YAPI_DB_PORT=27017
      - YAPI_DB_DATABASE=yapi
      - YAPI_MAIL_ENABLE=false
      - YAPI_LDAP_LOGIN_ENABLE=false
      - YAPI_PLUGINS=[]
    depends_on:
      - yapi-mongo
    links:
      - yapi-mongo
    restart: unless-stopped
  yapi-mongo:
    image: mongo:latest
    container_name: yapi-mongo
    volumes:
      - ./data/db:/data/db
    expose:
      - 27017
    restart: unless-stopped

添加ldap后只是把ldap的变量信息添加到配置文件中。

version: '3'

services:
  yapi-web:
    image: jayfong/yapi:latest
    container_name: yapi-web
    ports:
      - 40001:3000
    environment:
      - YAPI_ADMIN_ACCOUNT=admin@XXXXXXX.cn
      - YAPI_ADMIN_PASSWORD=admin
      - YAPI_CLOSE_REGISTER=true  #禁用注册
      - YAPI_DB_SERVERNAME=yapi-mongo
      - YAPI_DB_PORT=27017
      - YAPI_DB_DATABASE=yapi
      - YAPI_MAIL_ENABLE=false
      - YAPI_LDAP_LOGIN_ENABLE=true  #开启ldap
      - YAPI_LDAP_LOGIN_SERVER=ldap://10.16.202.178:389
      - YAPI_LDAP_LOGIN_BASE_DN=cn=admin,dc=XXXXXXX,dc=cn
      - YAPI_LDAP_LOGIN_BIND_PASSWORD=XXXXXXX
      - YAPI_LDAP_LOGIN_SEARCH_DN=ou=user,dc=XXXXXXX,dc=cn
      - YAPI_LDAP_LOGIN_SEARCH_STANDARD=uid
      - YAPI_PLUGINS=[]
    depends_on:
      - yapi-mongo
    links:
      - yapi-mongo
    restart: unless-stopped
  yapi-mongo:
    image: mongo:latest
    container_name: yapi-mongo
    volumes:
      - ./data/db:/data/db
    expose:
      - 27017
    restart: unless-stopped

我们可以根据自己的需求，修改docker映射端口，关联mongodb等信息，还有就是ldap的信息，我这里直接修改后启动。

[root@wulaoer.org docker-YApi]# pip install docker-compose
[root@wulaoer.org docker-YApi]# docker-compose up -d

会根据配置信息拉取数据进行创建容器，这里也就是创建了一个自定义的镜像然后把配置信息传到容器并启动起来。看一下容器的状态：

[root@wulaoer.org docker-YApi]#  docker ps
CONTAINER ID        IMAGE                    COMMAND                  CREATED             STATUS              PORTS                                      NAMES
1af79f3aa2c9        jayfong/yapi:latest      "docker-entrypoint.s…"   2 hours ago         Up 2 hours          0.0.0.0:40001->3000/tcp                    yapi-web
3968531b9e88        mongo:latest             "docker-entrypoint.s…"   2 hours ago         Up 2 hours          27017/tcp                                  yapi-mongo

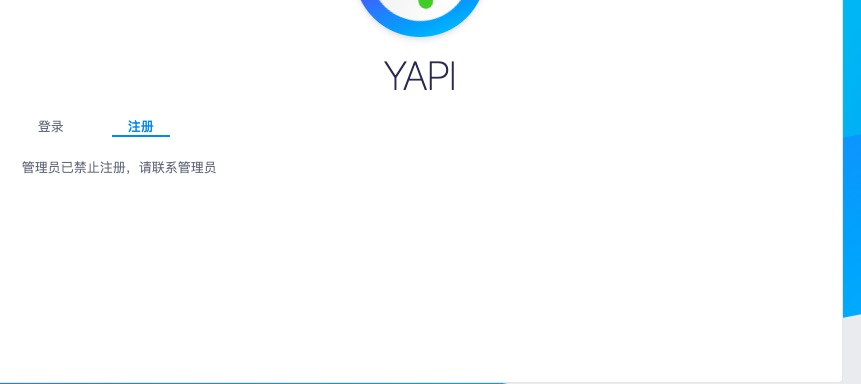

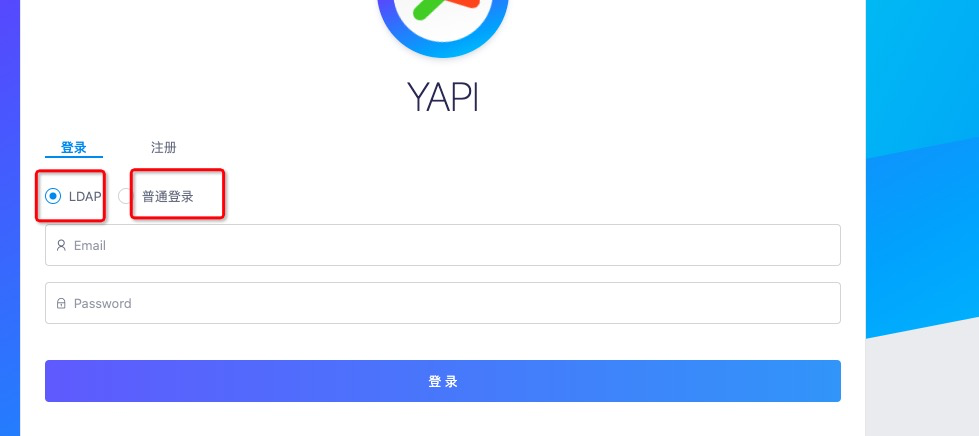

yapi搭建好了，可以访问http://IP:40001访问，看下面的页面
