Atlas配置MySQL读写分离

Atlas是360团队弄出来的一套基于MySQL-Proxy基础之上的代理，修改了MySQL-Proxy的一些BUG，并且优化了很多东西。而且安装方便。配置与注释写的都很详细，并且是都是中文，不过从Altas在github上的代码来看，将近一年没更新了。与Atlas类似的产品有Cobar、Cobar、amoeba、TDDL、mycat等，不过这些产品部分已经停滞或文档不全面，mycat相对比较活跃。

Atlas官方文档链接：https://github.com/Qihoo360/Atlas/blob/master/README_ZH.md

Atlas下载链接：https://github.com/Qihoo360/Atlas/releases

注意：1、`Atlas`只能安装运行在64位的系统上
​	2、`Centos 5.X`安装`Atlas-XX.el5.x86_64.rpm`，`Centos 6.X/7.X`安装`Atlas-XX.el6.x86_64.rpm`
​	3、后端`mysql`版本应大于`5.1`，建议使用`Mysql 5.6`以上

2、安装配置

2.1 环境准备

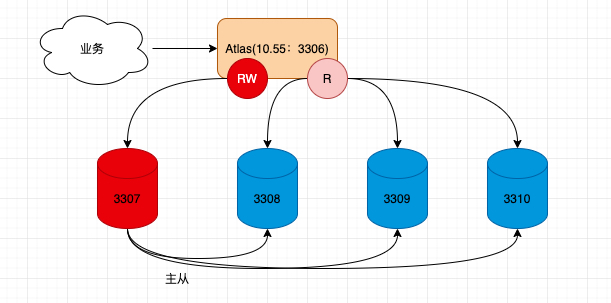

两台服务器 192.168.10.54：MySQL 5.7.30 一主三从，3307-3310端口 192.168.10.55：Atlas

2.2 下载安装Altas

[root@db3 ~]# wget https://github.com/Qihoo360/Atlas/releases/download/2.2.1/Atlas-2.2.1.el6.x86_64.rpm
[root@db3 ~]# rpm -ivh Atlas-2.2.1.el6.x86_64.rpm
Preparing...        ####################### [100%]
Updating / installing...
   1:Atlas-2.2.1-1  ####################### [100%]

2.3 处理配置文件

[root@db3 ~]# cd /usr/local/mysql-proxy/conf/
[root@db3 conf]# mv test.cnf test.cnf.bak

[root@db3 conf]# vim test.cnf
[mysql-proxy]
admin-username = user    # 管理用户
admin-password = pwd     # 管理密码
proxy-backend-addresses = 192.168.10.54:3307    # 写节点（主库）
proxy-read-only-backend-addresses = 192.168.10.54:3308,192.168.10.54:3309,192.168.10.54:3310   # 只读节点（从库）
pwds = test:3yb5jEku5h4=,repl:3yb5jEku5h4=      # 业务连接用户密码（逗号分隔），密码为Atlas/bin目录下encrypt命令生成
daemon = true       # 后台运行
keepalive = true    # 监测节点心跳
event-threads = 4   # 并发数量，设置cpu核数一半
log-level = message   # 日志级别
log-path = /usr/local/mysql-proxy/log  # 日志目录
sql-log = On   # sql记录（可做审计）
proxy-address = 0.0.0.0:3306    # 业务连接端口
admin-address = 0.0.0.0:2345    # 管理连接端口
charset=utf8   # 字符集

2.4 启动服务

[root@db3 mysql-proxy]# /usr/local/mysql-proxy/bin/mysql-proxyd test start
OK: MySQL-Proxy of test is started
[root@db3 mysql-proxy]# ps -ef |grep proxy
root     105981      1  0 17:19 ?        00:00:00 /usr/local/mysql-proxy/bin/mysql-proxy --defaults-file=/usr/local/mysql-proxy/conf/test.cnf
root     105982 105981  0 17:19 ?        00:00:00 /usr/local/mysql-proxy/bin/mysql-proxy --defaults-file=/usr/local/mysql-proxy/conf/test.cnf
root     105995   1249  0 17:19 pts/0    00:00:00 grep --color=auto proxy

3、读写分离功能测试

测试读操作：

mysql -umha -pmha  -h 10.0.0.53 -P 33060
db03 [(none)]>select @@server_id;

测试写操作：

mysql> begin;select @@server_id;commit;

注意: DDL建议不要在Atlas触发，最好是到主库触发Online DDL或者PT-OSC DML建议begin; DML; commit;

3.1 连接服务

[root@db5 conf]# mysql -urepl -p123 -h192.168.10.55 -P3306
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.0.81-log MySQL Community Server (GPL)   # 5.0.81版本

3.2 只读测试

mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|           9 |
+-------------+
1 row in set (0.00 sec)

mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|          10 |
+-------------+
1 row in set (0.00 sec)

mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|           8 |
+-------------+
1 row in set (0.00 sec)

3.3 写入测试

mysql> begin;select @@server_id;commit;
Query OK, 0 rows affected (0.00 sec)

+-------------+
| @@server_id |
+-------------+
|           7 |
+-------------+
1 row in set (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

mysql> begin;select @@server_id;commit;
Query OK, 0 rows affected (0.00 sec)

+-------------+
| @@server_id |
+-------------+
|           7 |
+-------------+
1 row in set (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

4、管理功能简介

4.1 持久化配置文件

mysql> save config;
Empty set (0.00 sec)

4.2 连接管理服务

[root@db5 bin]# mysql -uuser -ppwd -h192.168.10.55 -P2345
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.0.99-agent-admin

4.3 节点管理

4.3.1 查看所有节点

mysql> SELECT * FROM backends;
+-------------+--------------------+-------+------+
| backend_ndx | address            | state | type |
+-------------+--------------------+-------+------+
|           1 | 192.168.10.54:3307 | up    | rw   |
|           2 | 192.168.10.54:3308 | up    | ro   |
|           3 | 192.168.10.54:3309 | up    | ro   |
|           4 | 192.168.10.54:3310 | up    | ro   |
+-------------+--------------------+-------+------+
4 rows in set (0.00 sec)

4.3.2 节点的上线和下线

下线

mysql> set offline 1;
+-------------+--------------------+---------+------+
| backend_ndx | address            | state   | type |
+-------------+--------------------+---------+------+
|           1 | 192.168.10.54:3307 | offline | rw   |
+-------------+--------------------+---------+------+
1 row in set (0.00 sec)
mysql> SELECT * FROM backends;
+-------------+--------------------+---------+------+
| backend_ndx | address            | state   | type |
+-------------+--------------------+---------+------+
|           1 | 192.168.10.54:3307 | offline | rw   |
|           2 | 192.168.10.54:3308 | up      | ro   |
|           3 | 192.168.10.54:3309 | up      | ro   |
|           4 | 192.168.10.54:3310 | up      | ro   |
+-------------+--------------------+---------+------+
4 rows in set (0.00 sec)

上线

mysql> set online 1;
+-------------+--------------------+---------+------+
| backend_ndx | address            | state   | type |
+-------------+--------------------+---------+------+
|           1 | 192.168.10.54:3307 | unknown | rw   |
+-------------+--------------------+---------+------+
1 row in set (0.00 sec)

4.3.3 添加删除节点

删除

mysql> remove backend 4;
Empty set (0.00 sec)

mysql> SELECT * FROM backends;
+-------------+--------------------+-------+------+
| backend_ndx | address            | state | type |
+-------------+--------------------+-------+------+
|           1 | 192.168.10.54:3307 | up    | rw   |
|           2 | 192.168.10.54:3308 | up    | ro   |
|           3 | 192.168.10.54:3309 | up    | ro   |
+-------------+--------------------+-------+------+
3 rows in set (0.00 sec)

添加

mysql> add slave 192.168.10.54:3310;
Empty set (0.00 sec)

mysql> SELECT * FROM backends;
+-------------+--------------------+-------+------+
| backend_ndx | address            | state | type |
+-------------+--------------------+-------+------+
|           1 | 192.168.10.54:3307 | up    | rw   |
|           2 | 192.168.10.54:3308 | up    | ro   |
|           3 | 192.168.10.54:3309 | up    | ro   |
|           4 | 192.168.10.54:3310 | up    | ro   |
+-------------+--------------------+-------+------+
4 rows in set (0.00 sec)

4.4 用户管理

4.4.1 在主库增加数据库用户

mysql> grant all on *.* to user1@'192.168.10.%' identified by '123';
Query OK, 0 rows affected, 1 warning (0.00 sec)

4.4.2 查看当前用

mysql> select * from pwds;
+----------+--------------+
| username | password     |
+----------+--------------+
| test     | 3yb5jEku5h4= |
| repl     | 3yb5jEku5h4= |
+----------+--------------+
2 rows in set (0.00 sec)

4.4.3 增加Atlas用户

mysql> add pwd user1:123;
Empty set (0.00 sec)

mysql> select * from pwds;
+----------+--------------+
| username | password     |
+----------+--------------+
| test     | 3yb5jEku5h4= |
| repl     | 3yb5jEku5h4= |
| user1    | 3yb5jEku5h4= |
+----------+--------------+
3 rows in set (0.00 sec)
